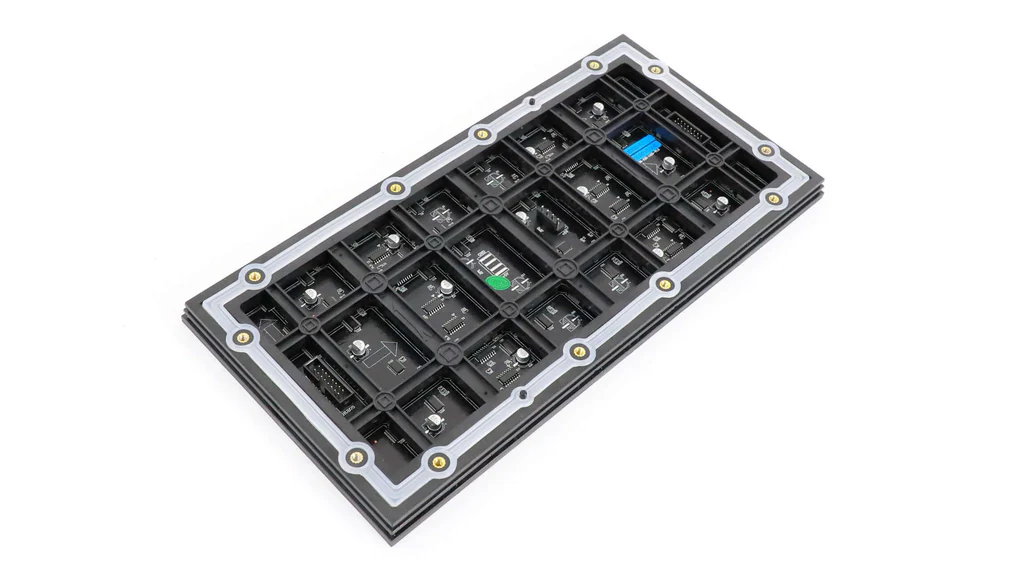

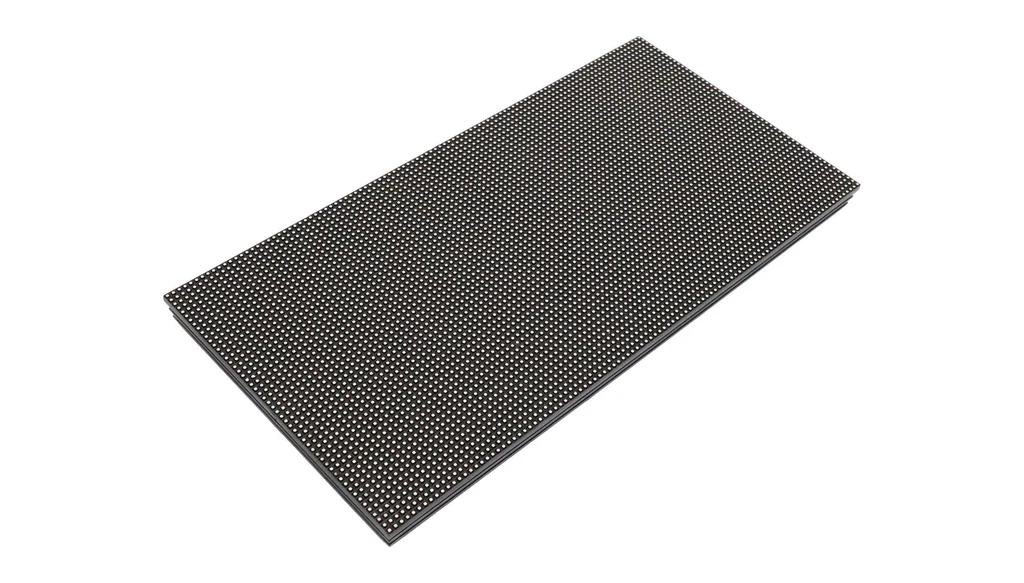

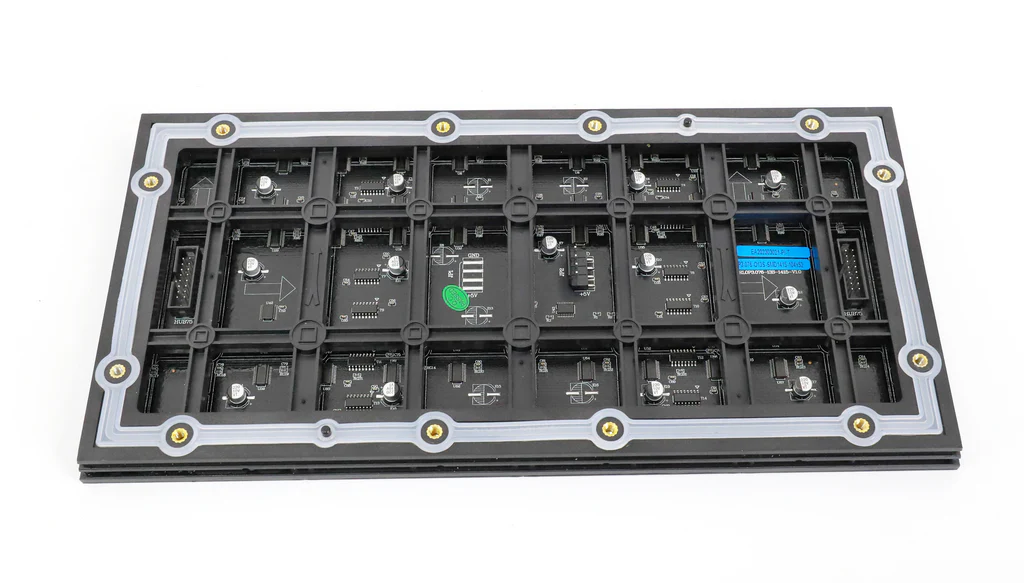

Outdoor P3.076 320x160mm LED Screen Display Module

LED Lamp Specification

Color

Package

Intensity

Viewing Angle

Wavelength

Testing Conditions

Red

SMD1415

48mcd

120°/120°

622nm

25℃,8mA

Green

155mcd

120°/120°

526nm

25℃,5mA

Blue

20mcd

120°/120°

470nm

25℃,3mA

Module Parameter

Pixel Pitch

3.076mm

Pixel Configuration

SMD1415

Density

105,688 pixels/㎡

Module Resolution

104pixel(L) * 52pixel(H)

Module Dimension

320mm(L) * 160mm(H) * 25mm(D)

Driving Mode

Constant current, 1/13 duty

Electricity Parameter

Optical Ratings

Brightness

≥5,000 cd/㎡

Viewing Angle

120°(Horizontal)； 120°(Vertical)

Best Viewing Distance

≥3m

Gray Grade

14 bits

Display Color

4.4 trillion colors

Brightness Adjustment

100 grades by software or automatically by sensor

Max. Power Consumption

40W

Control System

Frame Frequency

≥60Hz

Refresh Frequency

≥1920Hz

Input Signal

Composite Video, S-video, DVI, HDMI, SDI, HD-SDI

Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode

800*600, 1024*768, 1280*1024, 1600*1200

Color Temperature

5000�9300 adjustable

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

Reliability

Working Temperature

-20～+60 ºC

Storage Temperature

-30～+70 ºC

Working Humidity

10%～90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Operating Time

≥72 hours

Protection Grade

IP65

Out-of-Control Pixel Rate

≤0.01%
